家用服务器debian系统新机安装及设置



apt update -y && apt upgrade -y && reboot   #更新系统并重启


一、系统安装

1、软件安装镜像选择“网络”镜像

2、选择debian桌面环境+xfce+web server+SSH server+标准系统工具


二、基础设置


没有开通root账号的SSH登录权限之前可以先登录普通账号,然后输入su及root密码进入root状态


1、debian 11换源(换清华源)

cp /etc/apt/sources.list /etc/apt/sources.list_bak   #备份原有源文件

方法一:纯命令方式(整体复制、整体粘贴,不要变成一行)

cat > /etc/apt/sources.list << EOF
deb https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye main contrib non-free
deb-src https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye main contrib non-free
deb https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye-updates main contrib non-free
deb-src https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye-updates main contrib non-free
deb https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye-backports main contrib non-free
deb-src https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye-backports main contrib non-free
deb https://mirrors.tuna.tsinghua.edu.cn/debian-security bullseye-security main contrib non-free
deb-src https://mirrors.tuna.tsinghua.edu.cn/debian-security bullseye-security main contrib non-free
EOF

2、debian 12换源(换中科源)

cp /etc/apt/sources.list /etc/apt/sources.list_bak   #备份原有源文件

方法一:纯命令方式(整体复制、整体粘贴,不要变成一行)

cat > /etc/apt/sources.list << EOF
deb https://mirrors.ustc.edu.cn/debian/ bookworm main contrib non-free
deb-src https://mirrors.ustc.edu.cn/debian/ bookworm main contrib non-free
deb https://mirrors.ustc.edu.cn/debian/ bookworm-updates main contrib non-free
deb-src https://mirrors.ustc.edu.cn/debian/ bookworm-updates main contrib non-free
deb https://mirrors.ustc.edu.cn/debian/ bookworm-backports main contrib non-free
deb-src https://mirrors.ustc.edu.cn/debian/ bookworm-backports main contrib non-free
deb https://mirrors.tuna.tsinghua.edu.cn/debian-security bookworm-security main contrib non-free
deb-src https://mirrors.tuna.tsinghua.edu.cn/debian-security bookworm-security main contrib non-free
EOF


apt update   #重新载入软件源


2、安装基础软件

apt install -y sudo -y wget -y curl -y fuse -y mtr -y socat -y vim -y zip -y unzip -y binutils -y xz-utils && sudo apt install -y vnstat && sudo systemctl enable vnstat && update-rc.d vnstat enable && sudo systemctl start vnstat   #除基本插件外另安装vnsta流量监控工具

apt install pluma gdebi  net-tools  samba minidlna   #系统软件安装工具

安装rustdesk远程桌面:https://rustdesk.com/zh/

安装搜狗输入法linux版:https://shurufa.sogou.com/linux

安装fsearch搜索工具:https://software.opensuse.org//download.html?project=home%3Acboxdoerfer&package=fsearch#manualDebian

安装fsearch时可能缺少libicu依赖,到这里http://ftp.de.debian.org/debian/pool/main/i/icu/下载对应的文件安装


3、让reboot命令生效

whereis reboot   #找到并记住reboot的文件路径

找到/etc/profile 这个配置文件后,进入文件改写

nano /etc/profile

在文件最下方加入下面这句话

export PATH=$PATH:/usr/sbin

export PATH=$PATH:xxx(xxx是你的reboot文件的目录路径)

比如上面图片中我的reboot文件路径是/usr/sbin

source /etc/profile   #重新加载使修改生效

换做shutdown也类似

whereis shutdown(找到shutdown的文件路径)



4、开通root用户SSH登录权限

方法一:nano /etc/ssh/sshd_config   #编辑sshd_config文件

把“#PermitRootLogin prohibit-password”改成“PermitRootLogin yes

把“#PasswordAuthentication yes”改成“PasswordAuthentication yes


方法二:sshd_config-2.zip下载此文件解压并改名,然后替换掉原系统文件

方法三:通过https://airportal.cn/ 传递文件


reboot    #重启系统



5、安装Xrdp远程桌面

apt install xrdp tigervnc-standalone-server   #安装 XRDP 和 TigerVNC 服务器

systemctl start xrdp   #启动XRDP服务

systemctl enable xrdp   #把XRDP加入开机启动

sudo systemctl status xrdp   #查看支行状态,出现绿色表示正常

dpkg-reconfigure xserver-xorg-legacy   #选“任何用户”

vncconfig -nowin&   #开启跨操作系统复制粘贴

reboot   #重启系统生效



三、进阶设置(服务器方向)

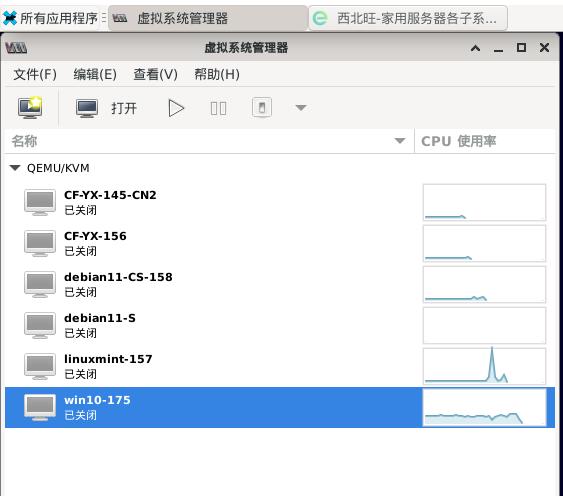

1、安装KVM虚拟机

apt install qemu qemu-system libvirt-clients libvirt-daemon-system

apt install qemu-kvm virtinst bridge-utils virt-viewer

sudo adduser $USER libvirt   #将root添加到相关用户组

apt install virt-manager -y   #安装virt-manager图形界面


2、安装Cockpit面板(web远程管理)

sudo apt install cockpit   #安装 cockpit 及其依赖项后,使用 systemctl 命令:

sudo systemctl start cockpit   #启动cockpit服务

sudo systemctl enable cockpit   #加入开机自启

sudo systemctl status cockpit   #查看cockpit状态

apt install cockpit-machines cockpit-podman cockpit-pcp -y   #安装虚拟机、podman(docker管理工具)、pcp监控项目

运行以下命令以允许 UFW 防火墙系统使用端口 9090:(如果需要的话)

sudo ufw enable

sudo ufw allow 9090/tcp

sudo ufw status


3、设置静态固定IP(设置成192.168.8.2)

ip addr   #查看系统网卡,一般有lo、 eno1,网卡名每台电脑都不太一样

cp /etc/network/interfaces /etc/network/interfacesbak  #备份interfacesbak原有配置文件

修改interfaces文件,把下面这些绿色的东西复制进去代替原有的所有内容

# This file describes the network interfaces available on your system
# and how to activate them. For more information, see interfaces(5).
source /etc/network/interfaces.d/*
# The loopback network interface
auto lo
iface lo inet loopback
allow-hotplug eno1
iface eno1 inet static
address 192.168.8.2
netmask 255.255.255.0
gateway 192.168.8.1


修改/etc/resolv.conf,把下面这些东西复制进去代替原有的所有内容

# Generated by NetworkManager
search lan
nameserver 223.5.5.5
nameserver 233.6.6.6


reboot   #重启系统生效


4、配置KVM虚拟机桥接网络

cp /etc/network/interfaces /etc/network/interfaces.bakup   #备份interfacesbak原有配置文件

编辑interfaces文件

eno1是电脑物理网卡名称,223.5.5.5、223.6.6.6是阿里的DNS

# This file describes the network interfaces available on your system
# and how to activate them. For more information, see interfaces(5).
source /etc/network/interfaces.d/*
# The loopback network interface
auto br0
iface br0 inet static
address 192.168.8.2
netmask 255.255.255.0
gateway 192.168.8.1
dns-nameservers 223.5.5.5 223.6.6.6
bridge_ports eno1
bridge_stp off
bridge_fd 0
bridge_maxwait 0


用上面内容替换原来的所有内容


reboot   #重启系统
sudo brctl show   #如果出现一个br0表示成功

ip addr   #关键查看br0是否有ip地址,且ip为你之前物理网卡的ip,而且这个时候你的物理网卡应该没有ip了,主机通过br0上网




apt update -y && apt upgrade -y && reboot   #更新系统并重启


5、其它硬盘挂载

mkdir /ywd   #在根目录下新建一个名为ywd的文件夹用来挂载其它硬盘

打开Cockpit后台192.168.8.2:9090

打开“存储”,安装“NFS支持”

然后点击“系统                                      9.10TiB”,然后点“9.10 TiB ntfs 文件系统”右边的挂载

挂载点填“/ywd”,也就是上面新建的文件夹




6、设置SMB共享

准备把ywd目录共享出去,10T硬盘挂载到了ywd目录

apt-get -y install libcups2 samba samba-common cups   #安装相应包

systemctl start smbd   #启动samba服务

systemctl enable smbd   #启用开机启动

chmod 777 /ywd   #设置目录权限,目录后面不要加“/”

smbpasswd -a yw       #设置yw为共享用户名(debian系统本身存在这个用户名),按照提示输入密码,密码可以空

编辑/etc/samba/smb.conf

在最后添加以下内容:

[10T]
  comment = share
  path = /ywd
  available = yes
  browseable = yes
  writable = yes
  valid users = yw
  dos charset = UTF8
  unix charset = UTF8
  display charset = UTF8

配置

smbpasswd -a 【用户名】 #然后输入密码

pdbedit -w -L #列出现有的Samba用户列表

vim /etc/samba/smb.conf

chmod 777 /share #给共享目录权限,其实给个600权限更安全

[disk1]

path = /share

writable = yes

write list = 【用户名】

valid users =【用户名】

display charset = UTF-8

unix charset = UTF-8

dos charset = UTF-8


设置服务:

查看服务状态   systemctl  status  smbd

开启服务           systemctl  start  smbd

重启服务           systemctl  restart  smbd

停止           systemctl  stop  smbd


共享选项及说明,按照需求合理配置

[共享名称]:共享中看到的共享目录名

comment = 共享的描述.

path = 共享目录路径(可以用%u、%m这样的宏来代替路径如:/home/share/%u)

browseable = yes/no指定该共享是否在“网上邻居”中可见。

writable = yes/no指定该共享路径是否可写。

read only = yes/no设置共享目录为只读(注意设置不要与writable有冲突)

available = yes/no指定该共享资源是否可用。

admin users = bobyuan,jane指定该共享的管理员,用户验证方式为“security=share”时,此项无效。

valid users = bobyuan,jane允许访问该共享的用户或组-“@+组名”

invalid users = 禁止访问该共享的用户与组(同上)

write list = 允许写入该共享的用户

public = yes/no共享是否允许guest账户访问。

guest ok = yes/no意义同“public”。

create mask = 0700指定用户通过Samba在该共享目录中创建文件的默认权限。0600代表创建文件的权限为rw-------

directory mask = 0700指定用户通过Samba在该共享目录中创建目录的默认权限。0600代表创建目录的权限为rwx------


systemctl restart smbd.service    #重新加载SMB服务使修改生效

或者

reboot   #重启系统


如果配置文件丢失可以用一下命令恢复,恢复最原始的配置文件

sudo apt purge samba-common samba

sudo apt install samba




7、设置NFS共享

准备把ywd目录共享出去,10T硬盘挂载到了ywd目录

apt install nfs-kernel-server nfs-common  #安装nfs相关软件

chown nobody:nogroup /ywd

chmod 777 /ywd   #赋予ywd目录相关权限

编辑/etc/exports文件,在其底部添加下面这句话,0/24表示1-255整个IP段都行

/ywd    192.168.8.0/24(rw,sync,insecure,no_subtree_check)

结束

systemctl restart nfs-kernel-server   #重新加载nfs服务使修改生效

或者

reboot   #重启系统


ro:指定目录只能以只读方式挂载

rw:授予对目录的读写权限

no_root_squash:这是一个非常危险的选项,它允许远程“ root”用户与主机的“ root”用户享有相同的特权

subtree_check:指定在导出目录而不是整个文件系统的情况下,主机应验证主机文件系统上文件和目录的位置

no_subtree_check:指定主机不应检查通过主机文件系统访问的文件的位置

sync:这只是确保主机使上传到共享目录的所有更改保持同步

async:忽略同步检查以提高速度

insecure:允许使用大于1024的端口号连接NFS


linux系统客户端挂载nfs共享的方法

apt install nfs-kernel-server nfs-common  #安装nfs相关软件

sudo mkdir /var/10T-dz   #本地新建一个/var/10T-dz文件夹,文件夹名字随便取

sudo mount -t nfs 192.168.8.2:/ywd /var/10T-dz   #把8.2上面的nfs共享文件夹ywd挂载到本机/var/10T-dz文件夹

编辑/etc/fstab文件,在文件最下面加上下面两局话,把nfs挂载添加到开机启动

# <file system>     <dir>       <type>   <options>   <dump>	<pass>
192.168.8.2:/ywd /var/10T-dz  nfs      defaults    0       0

sudo service nfs-kernel-server restart   #重启nfs服务
